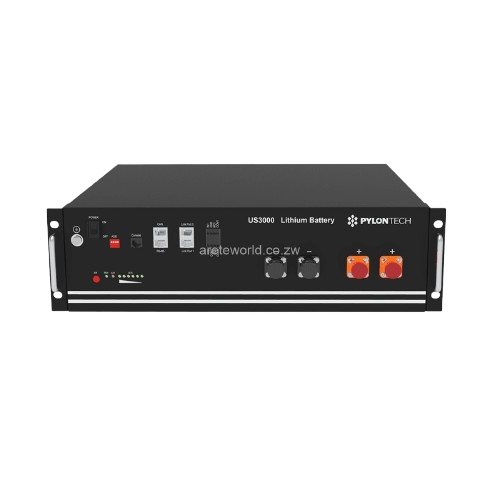

Description
Product Specifications
- Nominal Voltage (V)- 48
- Nominal Capacity (Wh)- 3552
- Usable Capacity (Wh) -3200
- Dimension (mm) – 442*420*132
- Weight (Kg) -32
- Discharge Voltage (V)- 45 ~ 53.5
- Charge Voltage (V) -52.5 ~ 53.5
- Recommend Charge/Discharge Current (A)- 37
- Max. Charge/Discharge Current (A) -74
- Peak Charge/Discharge Current (A) -100A@15sec
- Communication -RS485, CAN
- Configuration (max. in 1 battery group) -8pcs
- Working Temperature 0ć~50ć Charge,-10ć~50ć Discharge
- Shelf Temperature -20ć~60ć
- Protective class -IP20
- Cooling type- Natural Cooling
Features
- The whole module is non-toxic, non-polluting and environmentally friendly;
- Cathode material is made from LiFePO4 with safety performance and long cycle life;
- Battery management system (BMS)has protection functions including over-discharge,
- over-charge, over-current and high/low temperature;
- The system can automatically manage charge and discharge state and balance current and voltage of each cell;
- Flexible configuration, multiple battery modules can be in parallel for expanding capacity and power
- Adopted self-cooling mode rapidly reduced system entire noise;
- The module has less self-discharge, up to 6 months without charging it on shelf, no memory
effect, excellent performance of shallow charge and discharge; - Working temperature range is from -10 to 50 , (Charging 0~50 ; discharging -10~50 )
with excellent discharge performance and cycle life; - Small size and light weight, standard of 19-inch embedded designed module is comfortable
for installation and maintenance.
Downol0ad the Product ManualUS3000-Product-Manual-18BQSV0801
